$800-20000 /Set/Sets
| тып аплаты: | L/C,T/T,PayPa1 |
| мінімум заказ: | 1 Set/Sets |
| порт: | Ningbo/Shanghai |
Share:
Brand Name: Batten
Condition: New
Spare Parts Type: Screw Barrel
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Тып маркетынгу: Новы прадукт 2020
Warranty: 1 Year
After-sales Service Provided: Online Support
Key Selling Points: Competitive Price
Local Service Location: Egypt, India
After Warranty Service: Online Support
Applicable Industries: Manufacturing Plant, Plastic Goods Production
Showroom Location: Egypt, India
Hardening Hardness: Hb280-320
NITRIDED HARDNESS: Hv900-1000
Nitrided Case Depth: 0.45-0.8mm
Nitrided Brittleness: Less Than Grade 2
Surface Roughness: Ra 0.4
Screw Straightness: 0.015mm
Place Of Origin: Zhejiang, China
Material: 38crmoala, 38crmoala
| Продаж адзінак | : | Set/Sets |
| Тып пакета | : | Корпус з палівутам |
| Прыклад малюнка | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|

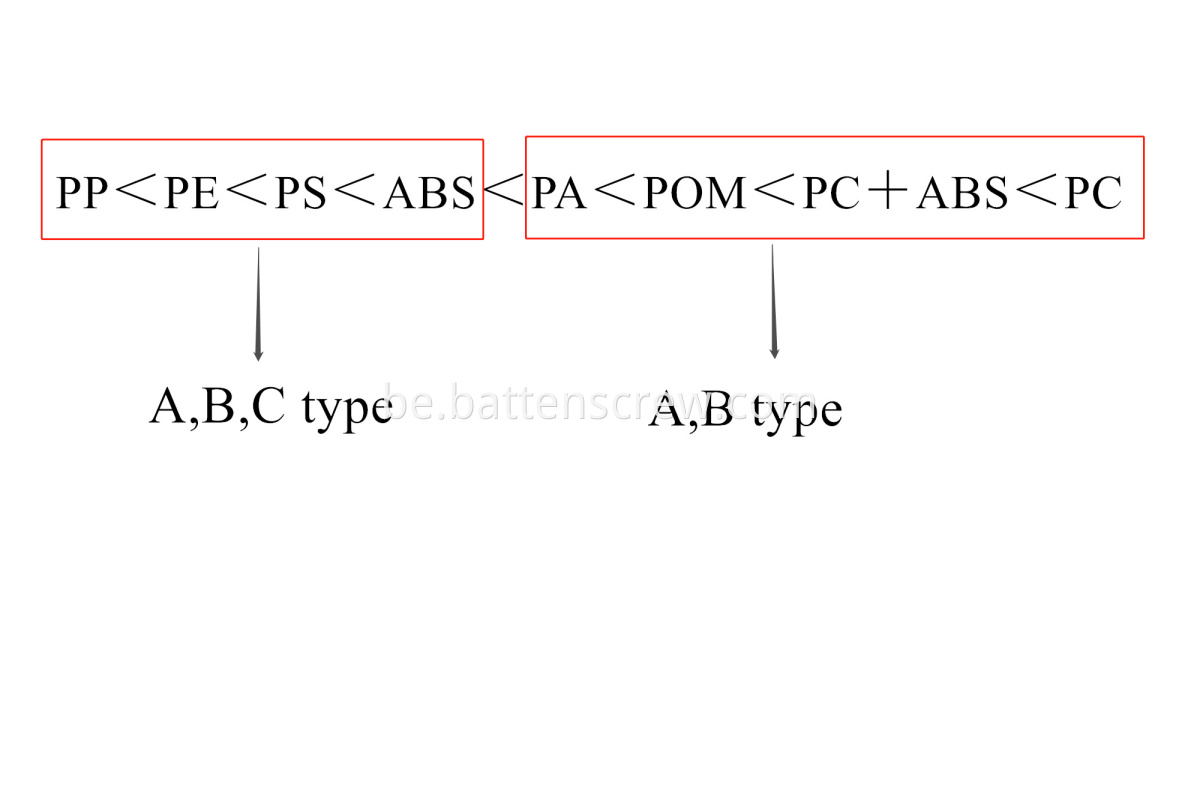

Alloy barrel type
|
|
|
|
|
|
|
|
|||||||
|
type
|
HRC
|
Alloy powder place of origin
|
Abrasion resistance
|
Corrosion resistance
|
Temperature Range
|
Alloy composition
|
Resin tupe
|
|||||||
|
C grade nickel-based alloy
|
57-64
|
china
|
Good
|
Excellent
|
≤400
|
Fe+Ni+Cr+Co+B
|
universal general resins and engineering resins
containing35% glass fiber PE,PP,ABS,AS,PS,TPE,PA,PC,PEI,PEEK,PPS,PAR,LCP
|
|||||||
|
B grade tungsten carbide nickel-based alloy
|
55-62
|
U.S.A
|
Excellent
|
Excellent
|
≤450
|
Ni+Cr+W+B
|
universal general resins and engineering resins .containing60% glass fiber PE,PP,ABS,AS,PS,TPE,PA,PC,PEI,PEEK,PPS,PAR,LCP
|
|||||||
|
A grade tungsten carbide cobait-based alloy
|
55-65
|
German
|
Particularly
good
|
Particularlygood
|
≤600
|
Co+Cr+W+Ni+B
|
Special engineering resins.Iron powder,ceramic powder,powder,copper powder,glass fiber and other engineering plastics and halogen-free + sticky little plastic
|
|||||||
|
Technical Specification
|
|
|
|
Type
|

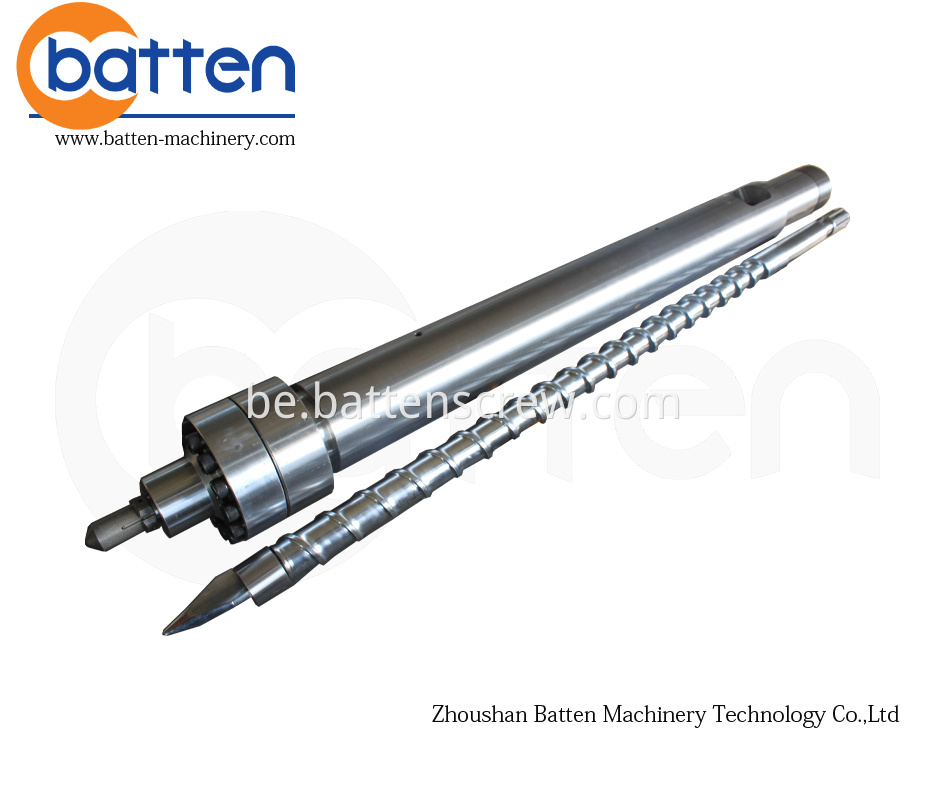

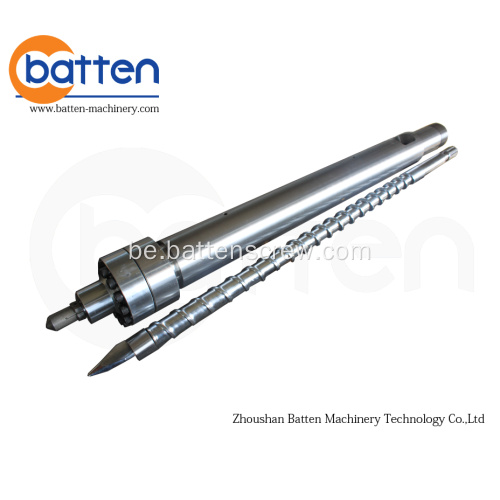

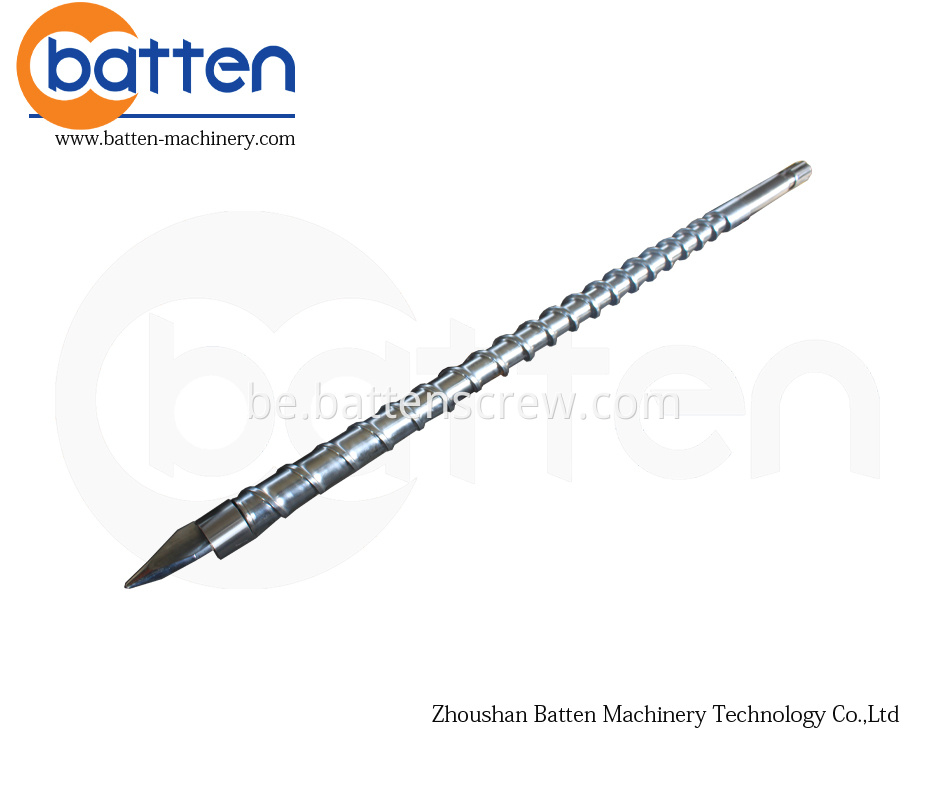

Injection Machine Screw Barrel
|
|
|
MOQ
|
1 set (1 pair of screws and 1 pc barrel)
|
|
|
Design Details
|
Screw

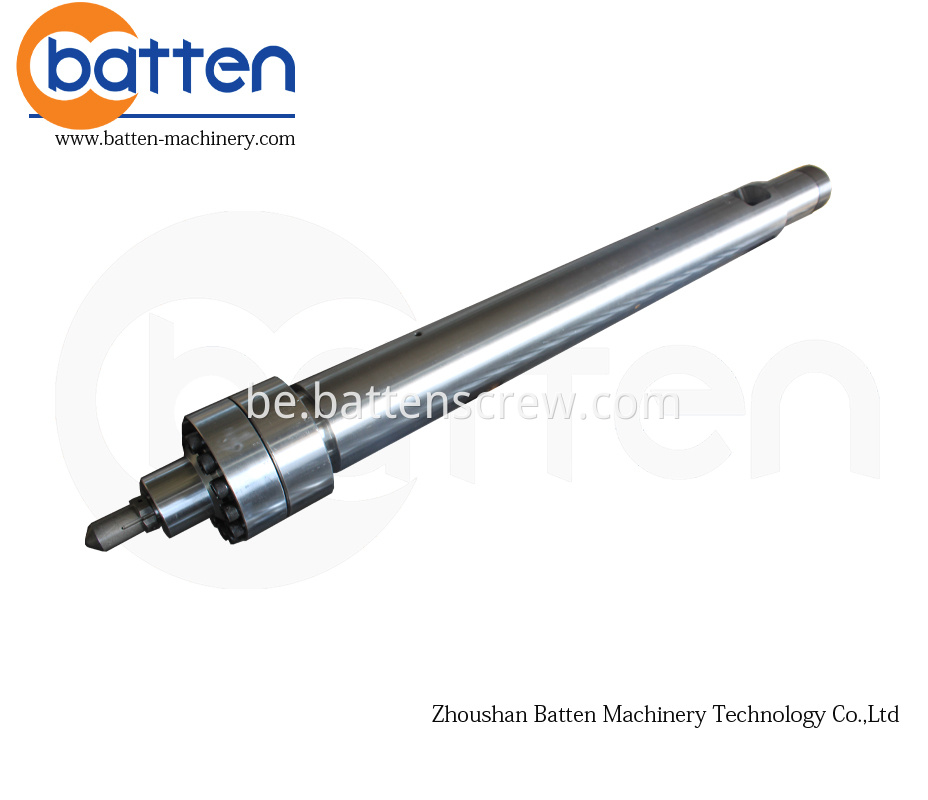

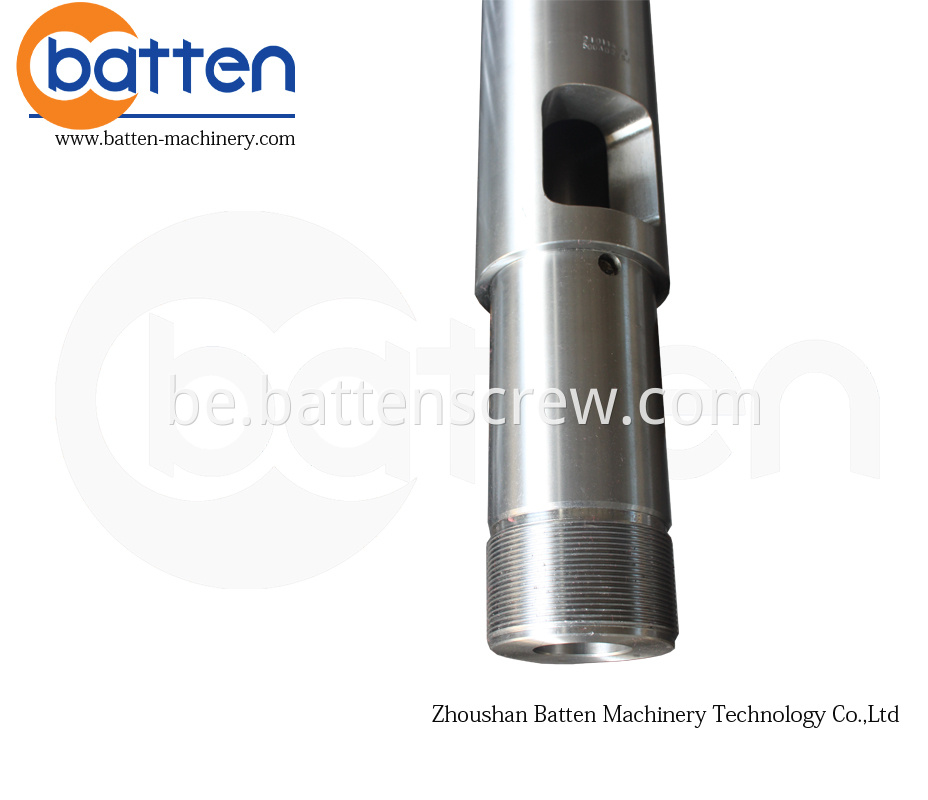

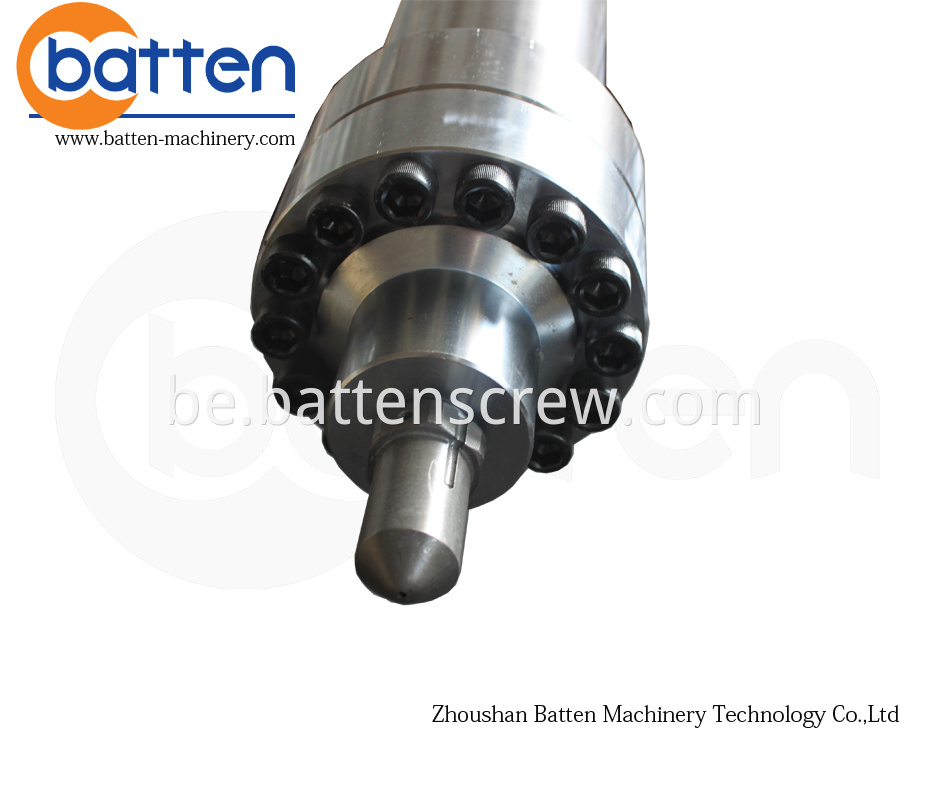

I TYPE:Nitirding II TYPE:Bimetallic III TYPE:Hard Chrome Barrel I TYPE:Nitirding II TYPE:Bimetallic |
|
|
Accessories
|
Screw tips + barrel tips
|
|
|
Technical Specification
|
Material:High quality 38CrMoAlA
Process:Advanced nitriding & bimetallic process Hardness After Hardening & Tempering:HB280-320 Nitrided Hardness:HV900-1000 Nitrided Case Depth:0.45-0.8mm Nitrided Brittleness:Less than Grade 2 Surface Roughness:Ra 0.4 Screw Straightness:0.015mm Alloy Hardness:HRC 50-65 Alloy Depth:0.8-2.0mm
Thickness After Chrome:0.05-0.10mm
Chrome Hardness:Not less than 950HV |
|
