Гаіцянскі плутон 3600/2500 Ін'екцыйныя шрубавыя бочкі для PP

$2500-4500 /Set/Sets

Option:

Звяжыцеся прама цяпер

Апісанне Прадукта

Атрыбуты прадукту

мадэль №: HAITIAN PLUTO 3600/2500

Nitriding Depth: 0.5 - 0.8mm

Alloy Hardness: Hrc 55-67

Process: Nitriding , Bimetallic, Alloy, Chrom Plating

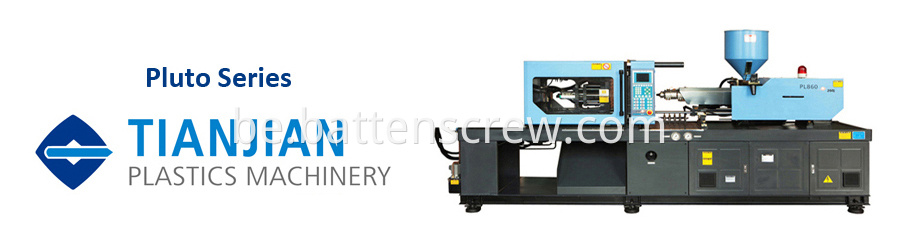

дадатак: Haitian Injection Molding Machine

Place Of Origin: Zhejiang, China

Material: 38crmoala

Ўпакоўка і дастаўка

Продаж адзінак	:	Set/Sets
Тып пакета	:	PE Фільм і стандартны драўляны корпус!

The file is encrypted. Please fill in the following information to continue accessing it

700T D100 IMM шрубавая бочка для пластыкавых прадуктаў упырску



Апісанне Прадукта

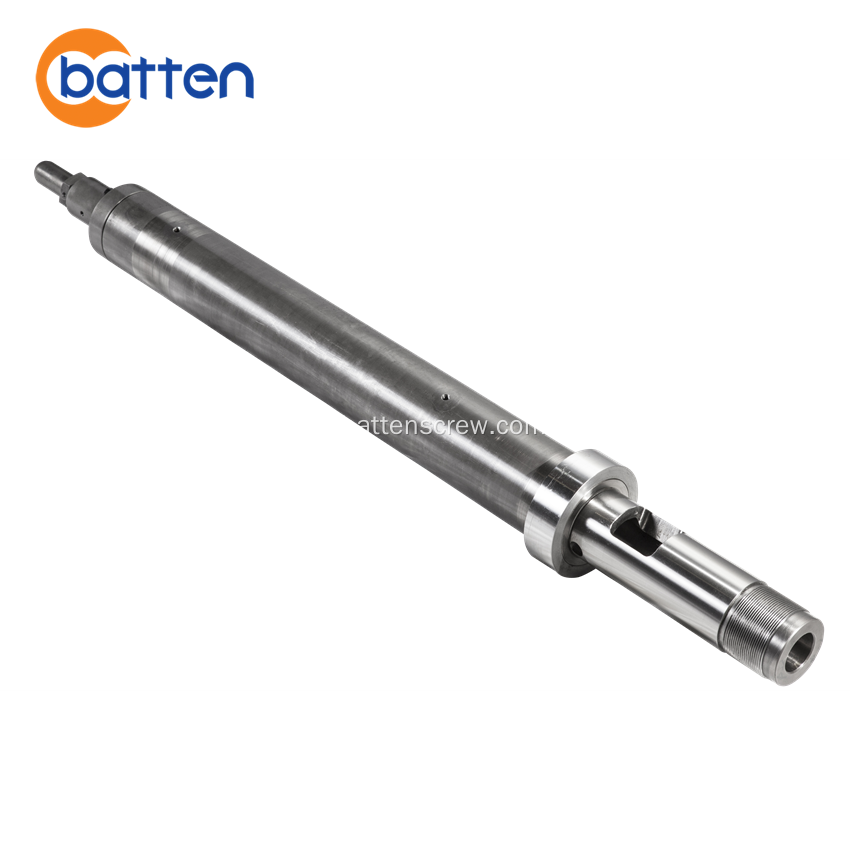

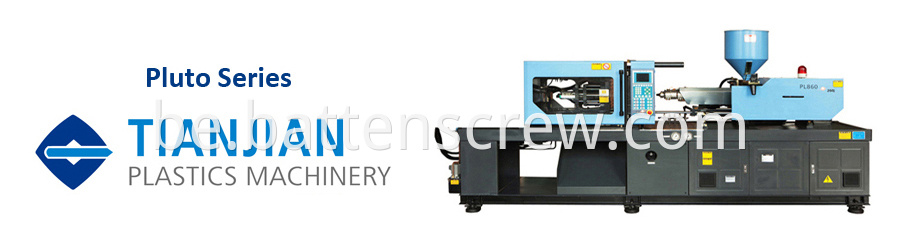

Гаіцянская плутон 3600/2500 шрубавая бочка / шрубавая бочка для PP

Technical Information
Main Base materials	1.38CrMoAlA (SACM645)
	2. SKD-61 (Special Tool Steel) 4Cr5MoSi V1
	3. 42CrMo (Ultrahigh StrengthSteel) 4140
	4. DC53 (Cold WorkDie Steel)
	5. W6Mo5Cr4V2 (High-SpeedToolSteel 6542)
Main Alloy Materials	1. Ni-based alloy/Deloro alloy
	2. Tungsten carbide/Wolfram carbide
	3. NiCo-based alloy
	4. Fe-based alloy
	5. Co-based alloy
Processing Technics	1. Heat treatment
	2. Quenching
	3. Nitriding treatment
	4. Bimetallic alloy welding for screw
	5. Bimetallic alloy centrifugal casting for barrel
	6. Hard-chrome electroplating
Technical parameters	1. Nitriding layer depth:0.5-0.8mm
	2. Nitrided hardness:900-1000HV
	3. Bimetallic layer depth: 0.8-3 mm
	4. Bimetallic hardness:57~72HRC
	5. Hard-chrome plating hardness after nitriding:≥950HV
	6. Chrome-plating layer depth:0.03-0.09mm
	7. Surface roughness:Ra 0.4
	8. Linearity of screw:0.015mm
