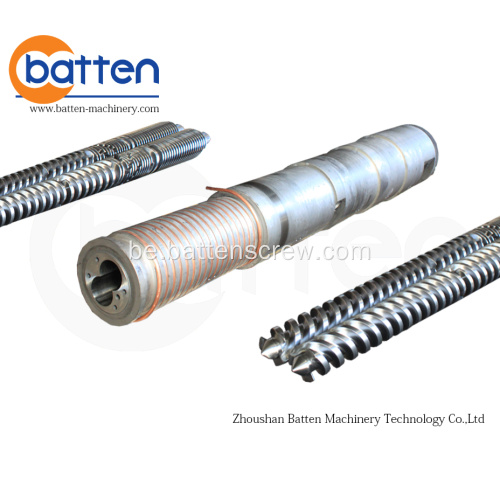

эканамічна эфектыўныя прадукты канічныя двайныя шрубы і бочка

$20001-2 Set/Sets

$1900≥3Set/Sets

тып аплаты:	L/C,T/T,PayPa1
порт:	Ningbo/Shanghai

Option:

Звяжыцеся прама цяпер

Апісанне Прадукта

Атрыбуты прадукту

Place Of Origin: Zhejiang, China

Material: 38crmoala

Ўпакоўка і дастаўка

The file is encrypted. Please fill in the following information to continue accessing it

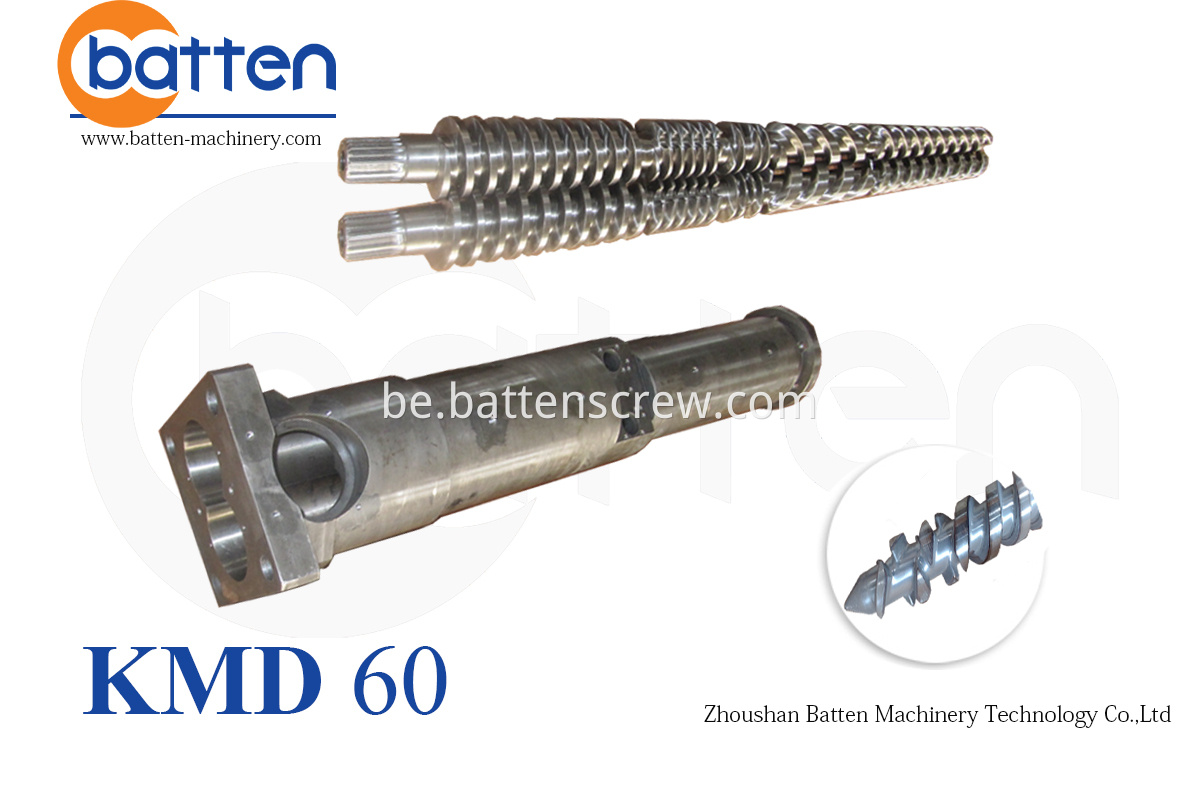

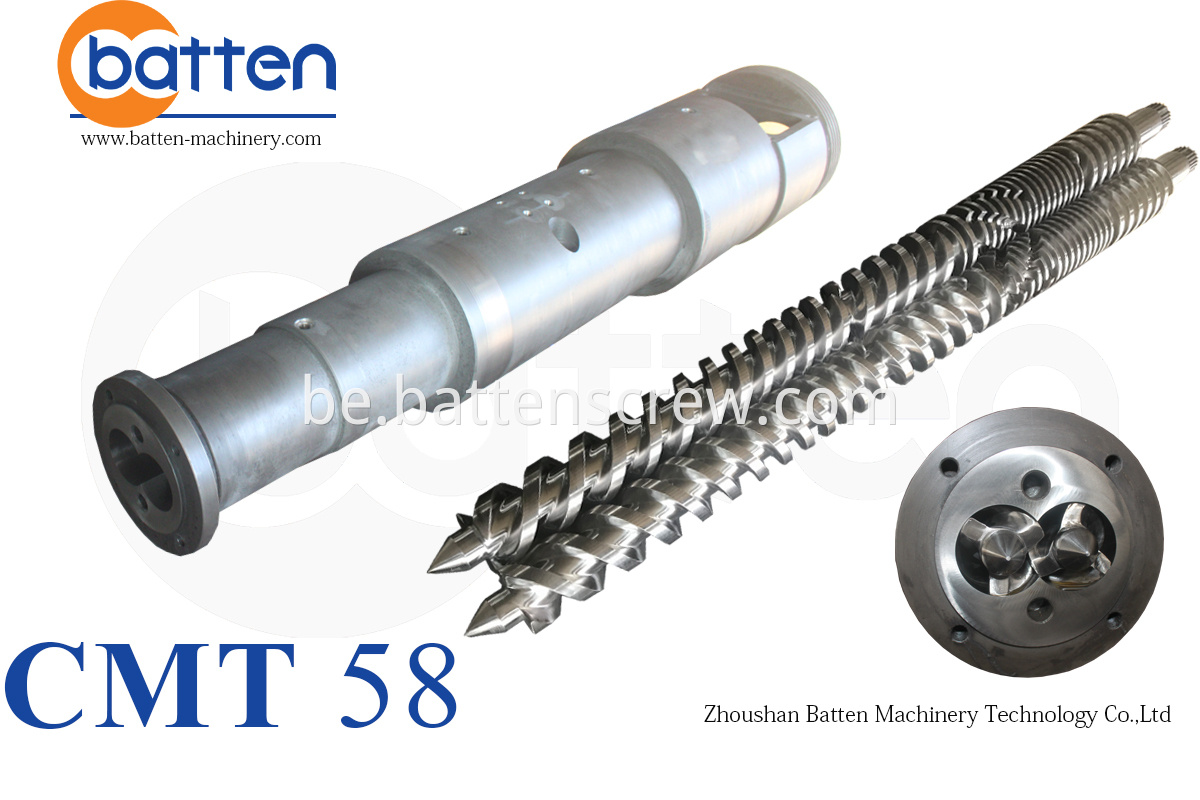

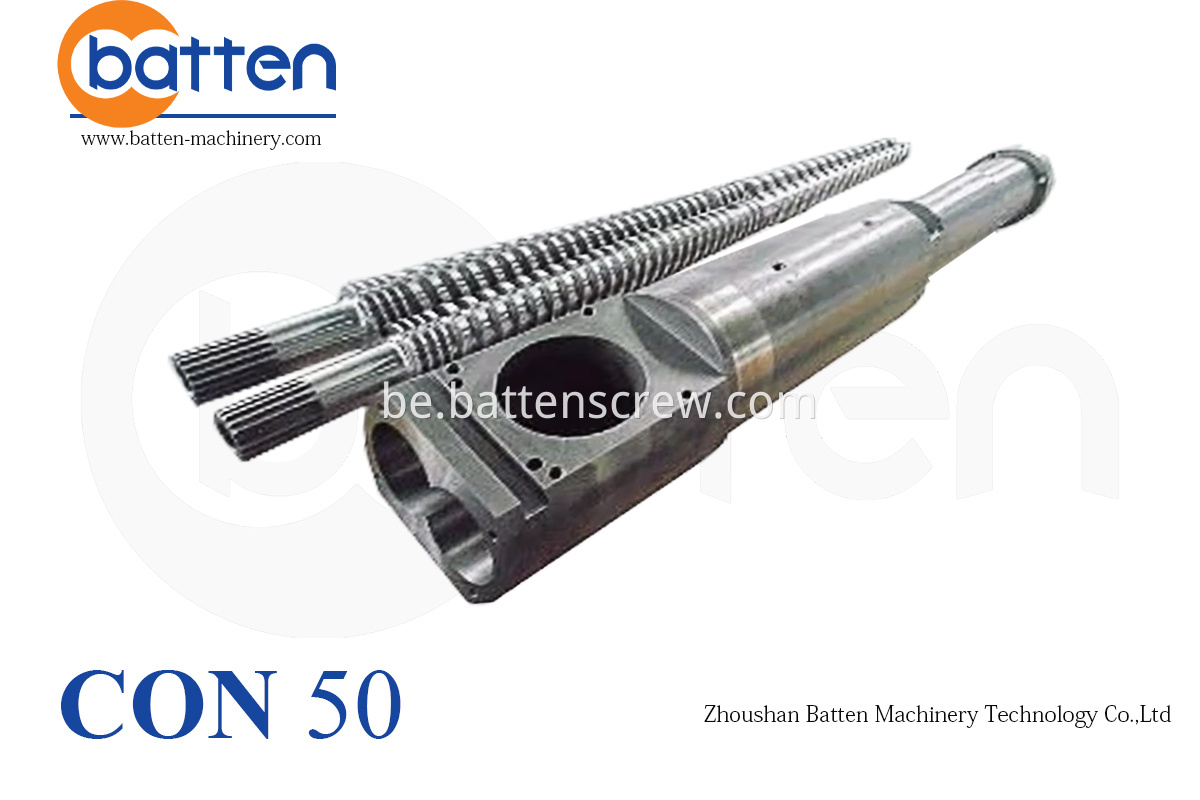

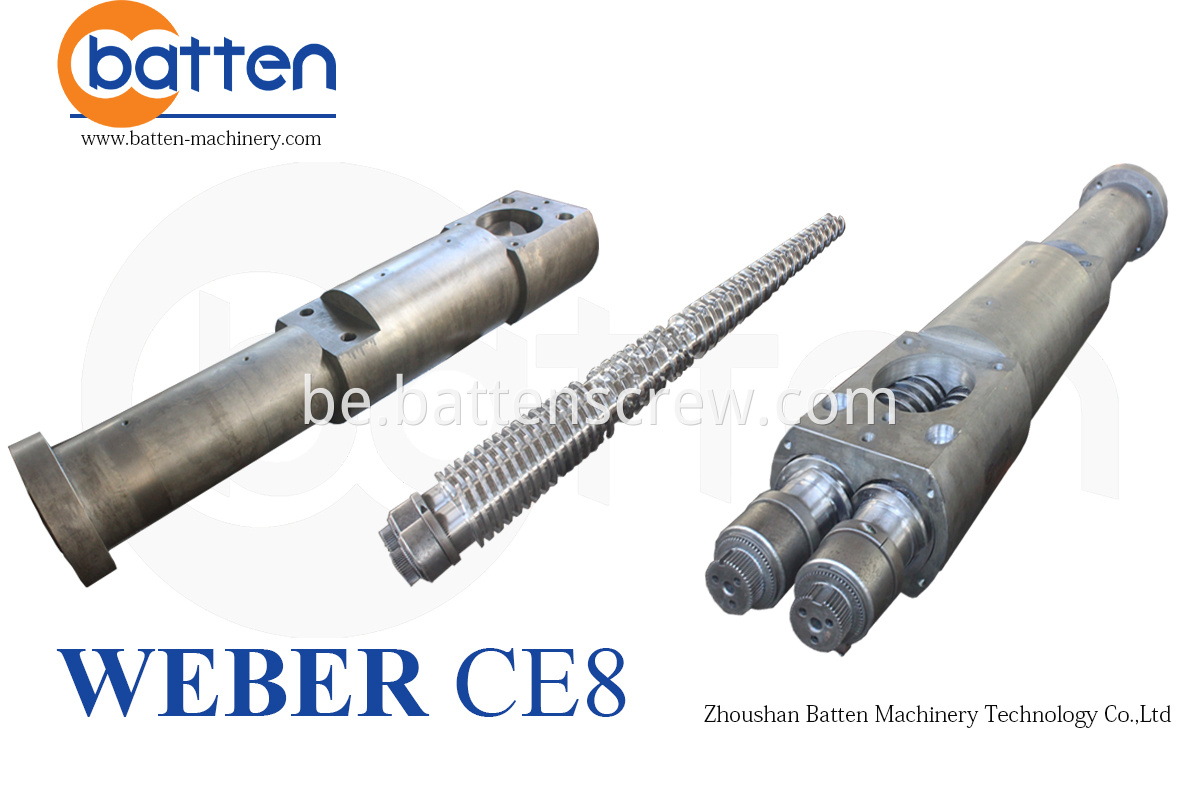

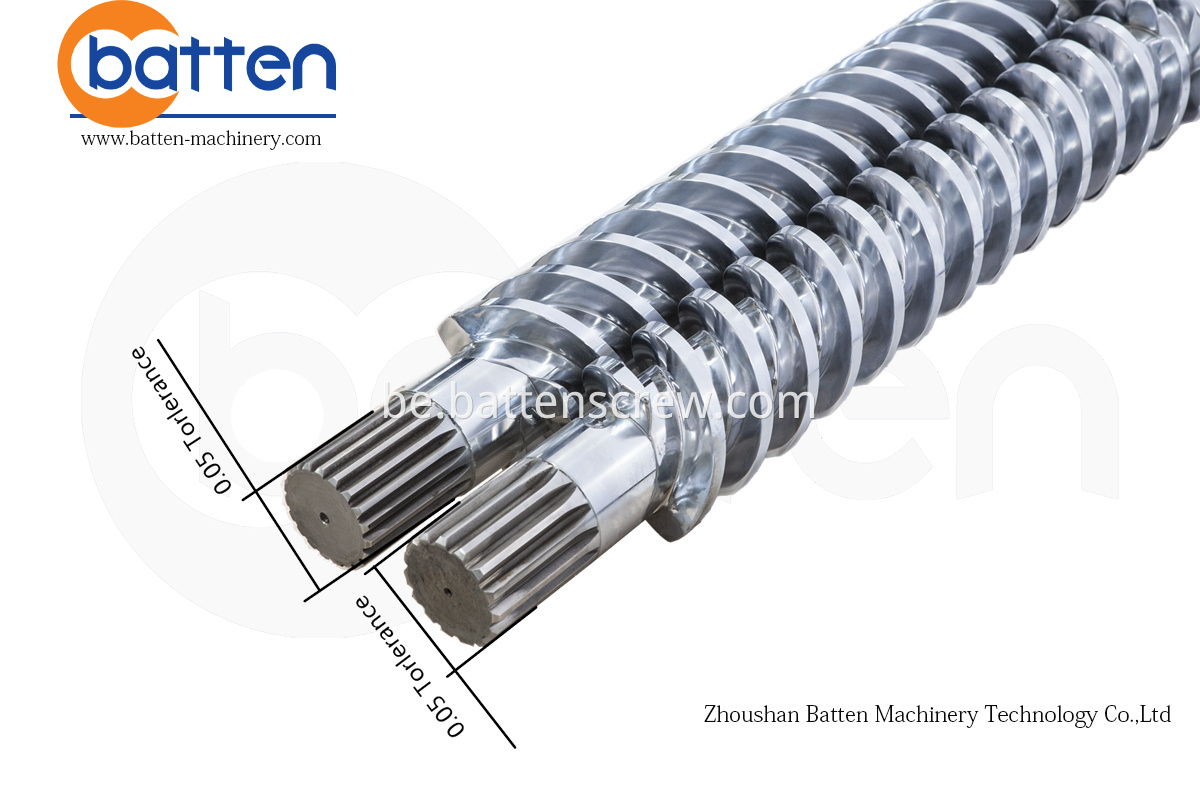

Высокая якасць 51 105 Канічная двайная пластыкавая закручаная бочка



Апісанне Прадукта

Technical Specification
Type	Conical Twin Screw Barrel
MOQ	1 set (1 pair of screws and 1 pc of barrel)

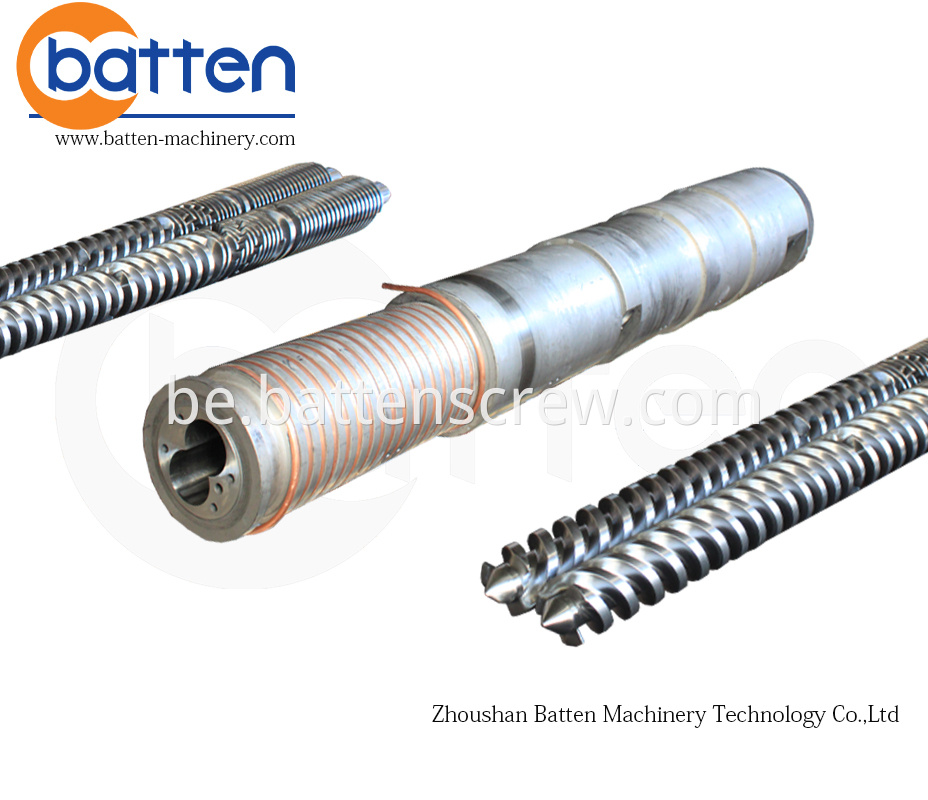

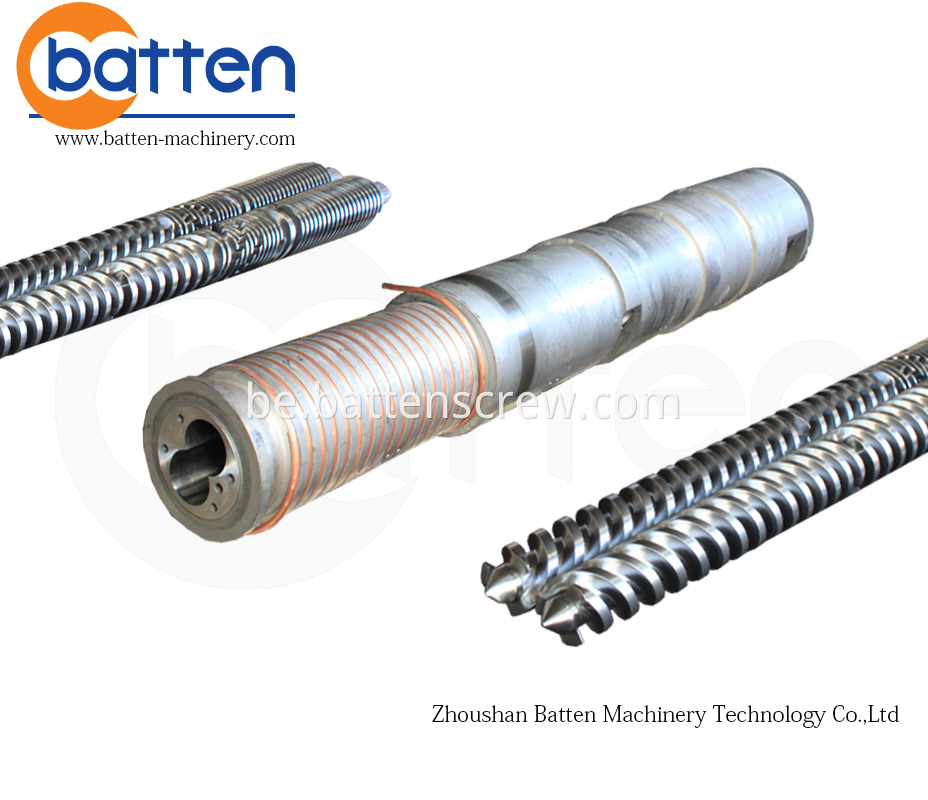

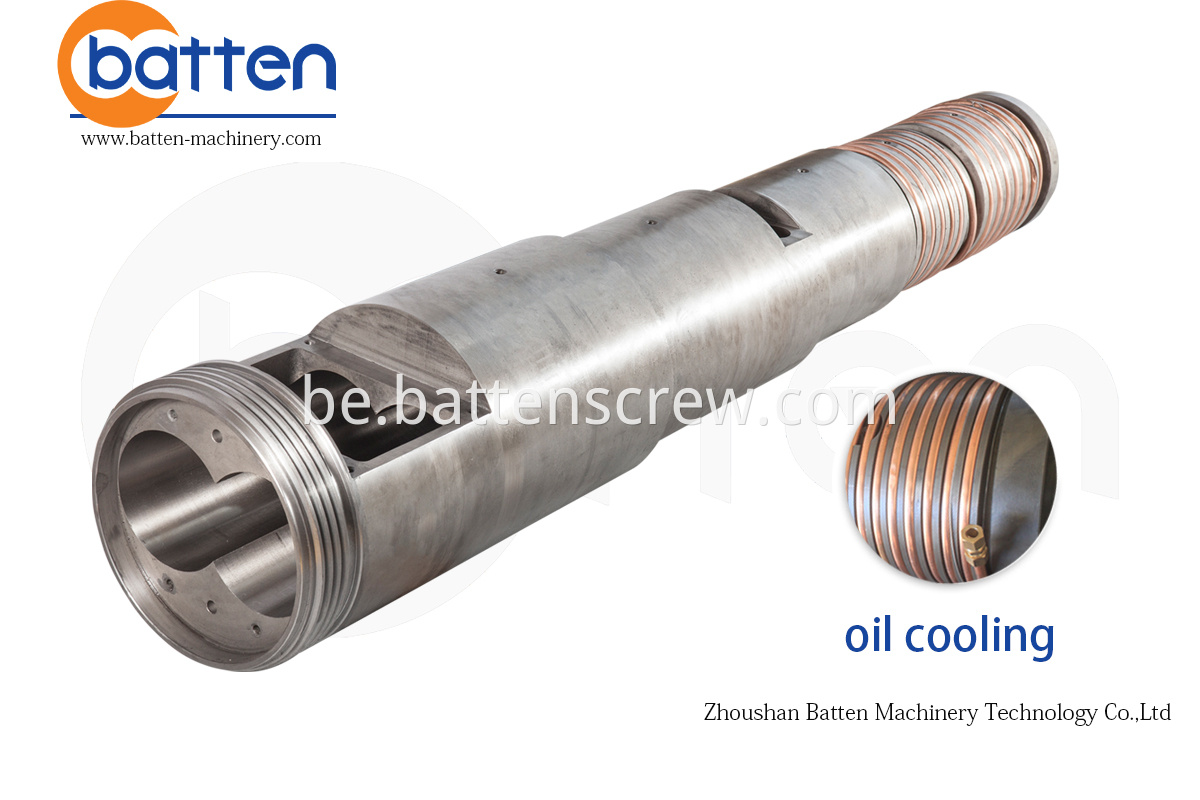

Design Details	Screw I TYPE:inside is water/oil cooling system II TYPE:outside is oil cooling system Barrel I TYPE:outside is air cooling system II TYPE:outside is copper pipe around cooling system
Accessories	Stop ring+washers to adjust the space between screw and barrel

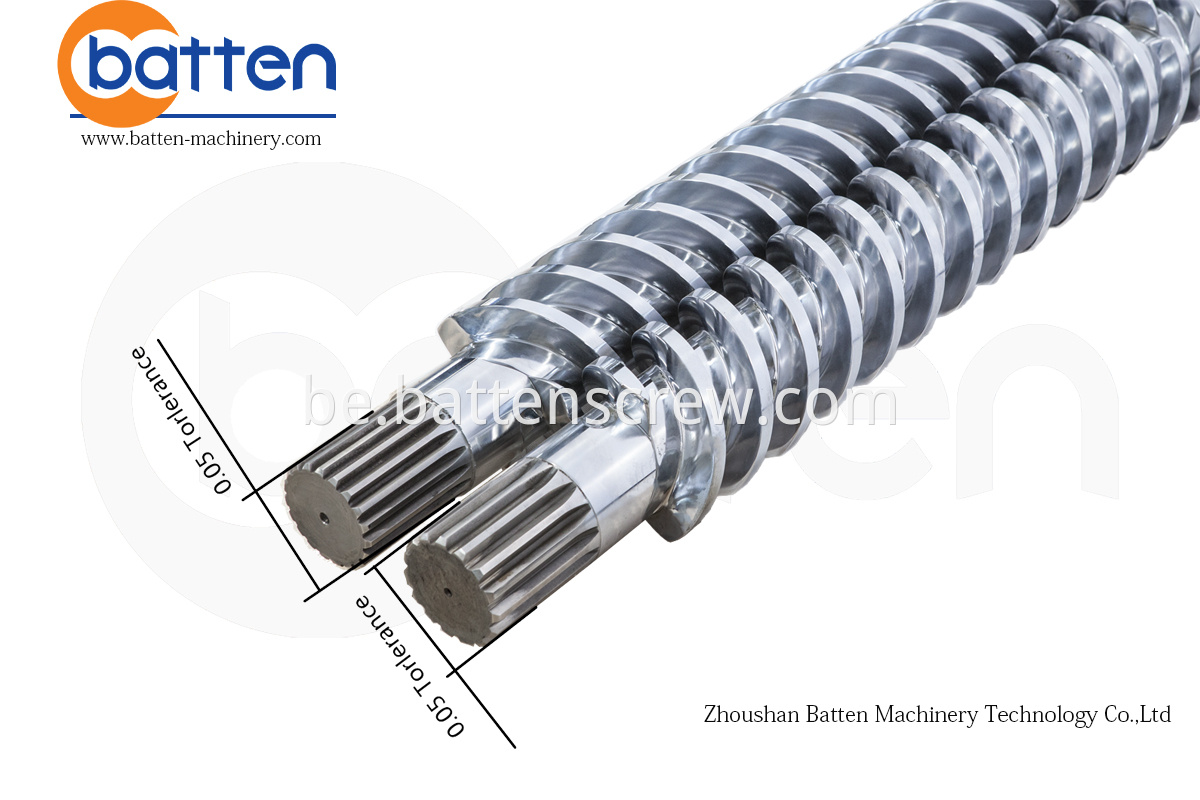

Technical Specification	Material:High quality 38CrMoAlA Process:Advanced nitriding & bimetallic process Hardness After Hardening & Tempering:HB280-320 Nitrided Hardness:HV900-1000 Nitrided Case Depth:0.45-0.8mm Nitrided Brittleness:Less than Grade 2 Surface Roughness:Ra 0.4 Screw Straightness:0.015mm Alloy Hardness:HRC 50-65 Alloy Depth:0.8-2.0mm

*The most common types of conical twin screw barrel extruder*
types of screw (d/D)	length of work(mm)	quantity ofextruder(kg/h)	speed of screw rotate(rpm)
Φ35/75	810	40-70	5~50
Φ45/100	990	50-80	5~45
Φ50/105	1070	100-150	4~45
Φ51/105	1220	100-150	4~45
Φ55/110	1220	120-180	4~40
Φ60/125	1320	150-200	4~40
Φ65/120	1440	200-250	4~40
Φ65/132	1440	200-250	4~40
Φ75/150	1480	250-320	4~35
Φ80/143	1660	300-360	4~35
Φ80/156	1800	300-360	4~35
Φ92/188	2000	400-500	3~35
